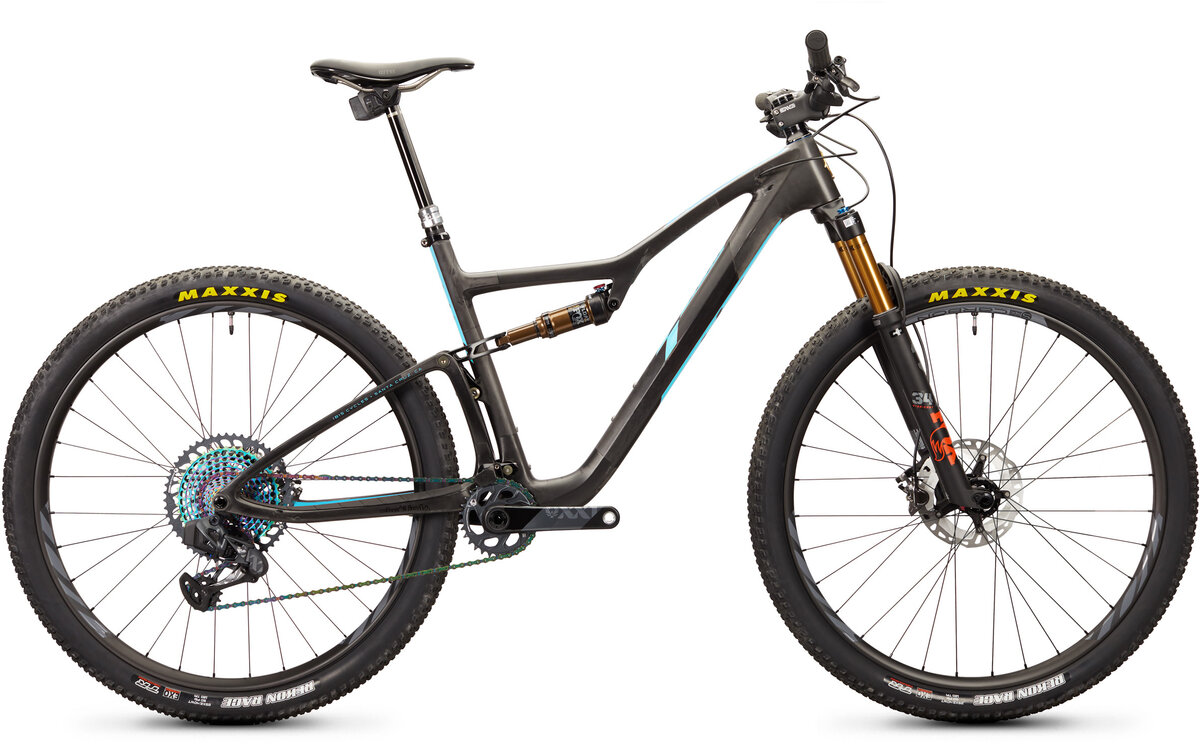

Ibis Exie XX1

Ibis Exie XX1
$12,799.00
Color:
Bug Zapper Blue
Size:
Large
Wheelset:
Ibis S28 I9 Carbon
Please select options

Details

The Exie is a World-Cup capable cross-country race bike that flat out shreds. With a sub 2,000g frame weight and dw-link suspension, it offers a stunning combination of pedaling efficiency and downhill performance. We designed, built, and test­ed it in our Santa Cruz factory, which is pow­ered by the warm Cal­i­for­nia sunshine.

BUILT BY US
We build each Exie in our North­ern Cal­i­for­nia fac­to­ry. This gives us the utmost con­trol, which enable us to hit remark­able frame strength, stiff­ness, and weight tar­gets for this frame. Learn more about the process.

SIZE SPECIFIC SEAT ANGLES
Whether you're rac­ing short track or on a mul­ti day epic, the Exie's seat tube angles allows you to har­ness your strongest mus­cles, while reduc­ing any poten­tial knee or wrist strain. We've also steep­ened the seat tube angles as the frames get larg­er, to allow rid­ers with dif­fer­ent inseams to achieve the same rid­ing positions.

DW-LINK SUSPENSION
Don't squan­der a sin­gle watt. Our dw-link sus­pen­sion plat­form offers incred­i­ble climb­ing effi­cien­cy and trac­tion along with plush, down­hill-crush­ing goodness.

RIDE MORE, WRENCH LESS
We use bush­ings where it makes sense and bear­ings where it doesn't. The IGUS bush­ings in our low­er link are lighter, stiffer, and vir­tu­al­ly main­te­nance free. We've also added fea­tures like a thread­ed bot­tom brack­et to help make any future main­te­nance easy.

INTERNAL CABLE ROUTING
Inter­nal cable rout­ing doesn't have to be a pain. We've added inter­nal tubes to our tubes, no pick­sets, flash­lights, or swear words required.

2.4” TIRE CLEARANCE
You can run over­built, chunky tires; you can run light, big vol­ume fast tires, but what­ev­er you run, you're not lim­it­ed by width.

2X BOTTLE CLEARANCE
The Exie has clear­ance for two water bot­tles inside the front tri­an­gle on every size frame.

INTEGRATED CHAIN GUIDE
Drop the ham­mer, not your chain.

SEVEN YEAR WARRANTY
If it's our fault, we'll fix it. Sim­ple as that.

Geometry

Geometry Chart:
SIZESMALLMEDIUMLARGEX-LARGE
Seat Tube Length (mm) 356 406 457 508
Top Tube Length (mm) 584 613 644 675
Head Tube Length (mm) 85 95 110 135
Chainstay Length (mm) 435 435 435 435
Seat Tube Angle 73.8° 73.8° 74.8° 75.9°
Head Tube Angle 67.2° 67.2° 67.2° 67.2°
Wheelbase (mm) 1128 1158 1202 1253
Stack (mm) 582 592 606 630
Reach (mm) 413 439 478 519
Standover (mm) 722 727 748 754
Trail (mm) 110 110 110 110
BB Drop (mm) 28 28 28 28
Sizes:
Small 152–165CM
Medium 163–175CM
Large 173–185CM
X-Large 183–198CM

Specs

Frame Carbon Fiber
Fork Fox 34 SC Fit 4 Remote 120mm, 44mm rake, Kabolt
Rear Shock Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Wheels Ibis S28 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires Maxxis Recon Race 29" x 2.4" Exo/TR WT
Bottom Bracket SRAM DUB BSA
Crankset Shimano RT-MT900 180/160
Shifters SRAM XX1 AXS 2 Button Eagle Triggers
Rear Derailleur SRAM XX1 Eagle AXS
Cassette/Freewheel SRAM XG 1299 Eagle 10-52
Chain SRAM XX1 Eagle
Brakes Shimano XTR M9100 2 piston
Rotors Shimano RT-MT900 180/160
Handlebars Enve M6 Bar 780mm
Tape/Grips Lizard Skin Charger
Stem Enve Mtn Stem 31.8mm S/M: 35mm, L/XL: 50mm S/M 40mm, L/XL 50mm
Headset Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower
Seatpost SRAM Reverb AXS Dropper S: 125mm, M: 150mm, L/XL: 170mm
Saddle WTB Silverado 142
Accessories & Extras XX1 AXS battery & power pack charger

* Subject to change without notice.
