Ibis Ripley AF SLX

Ibis Ripley AF SLX

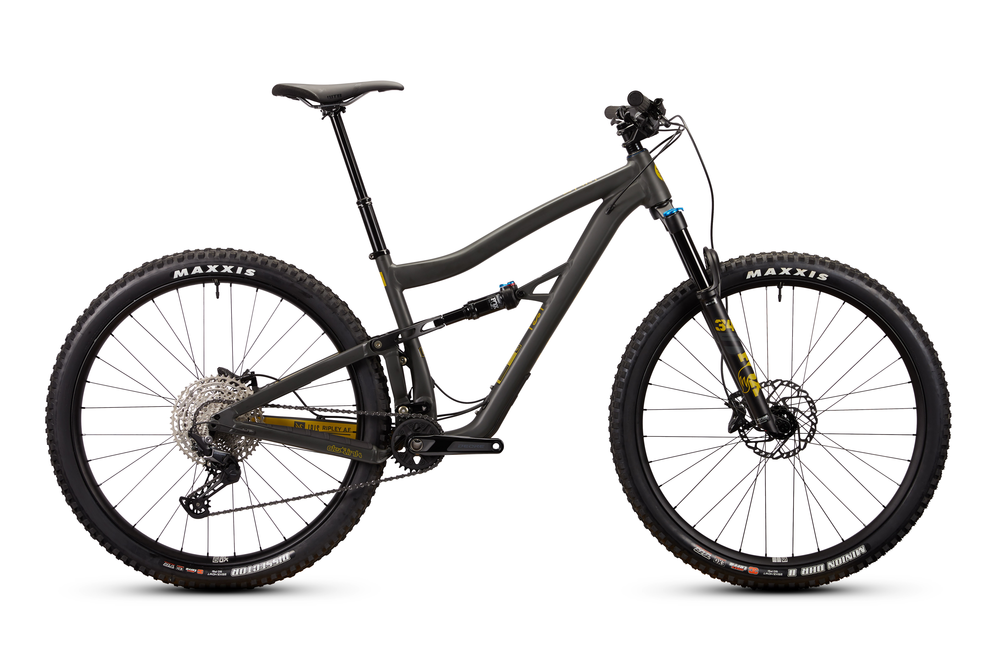

  • Color: Mustard Stain

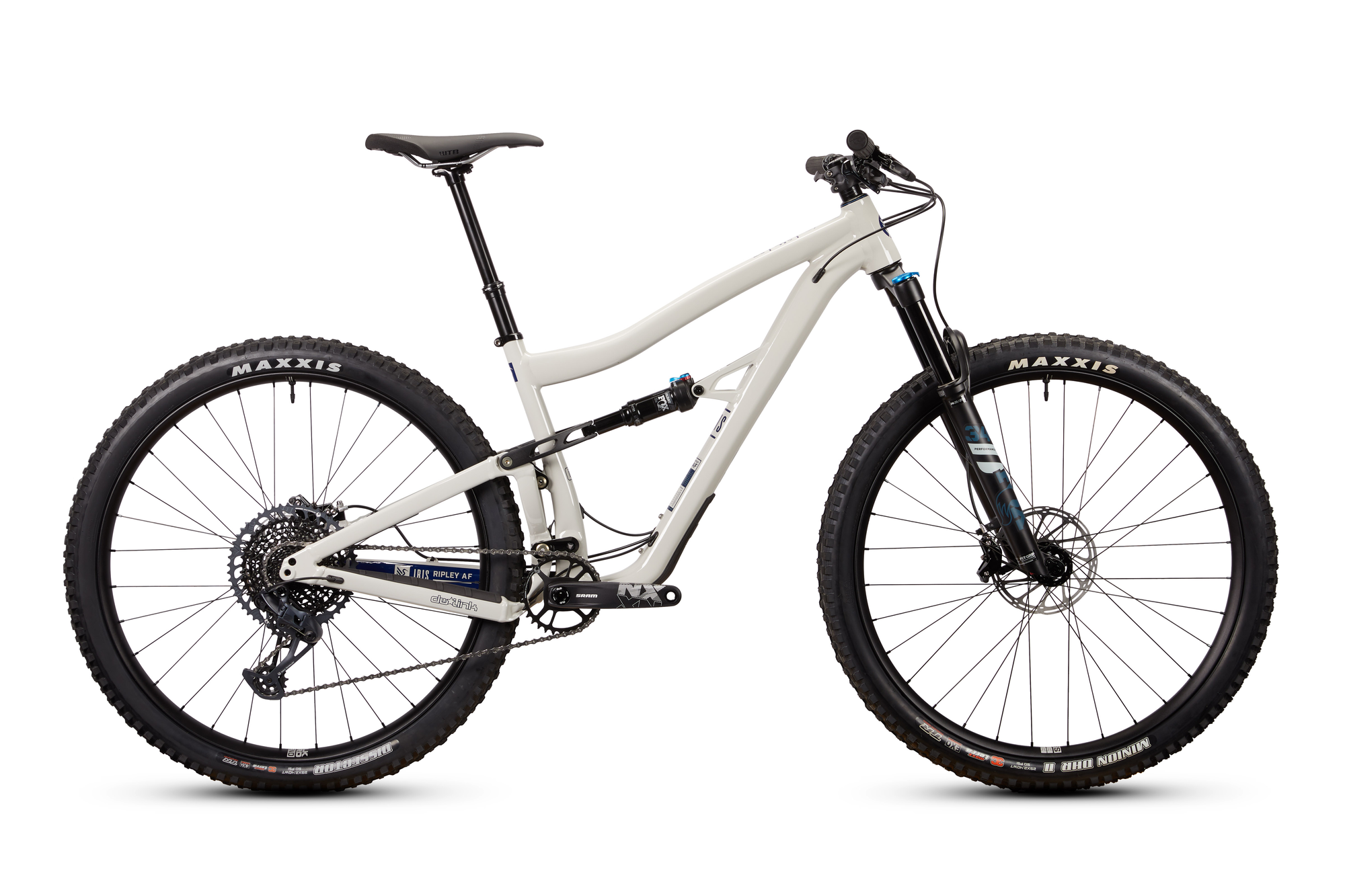

  • Color: Protein Shake
Protein Shake
Wheel Size:
Please select options


The Ripley AF is our beloved, category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet friendly price.

Geometry Chart:
Seat Tube Length (mm)368 381418482
Top Tube Length (mm)574 603630658
Head Tube Length (4mm stack of lower cup not included) (mm)90 105115125
Chainstay Length (mm)432 432432432
Seat Tube Angle76° 76°76°76°
Head Tube Angle65.5° 65.5°65.5°65.5°
Wheelbase (mm)1157 118812171246
BB Height (with 2.5 Maxxis Minons) (mm)335 335335335
Stack (mm)599 613622631
Reach (mm)425 450475500
Standover (mm)676 703722759
Trail (mm)114 114114114
Saddle height for seat tube angle (mm)620 700750807
SizeHeight (cm)Height (in)
S152 - 165cm 5'0" - 5' 4"
M163 - 175cm 5'3" - 5' 8"
L173 - 185cm 5'7" - 6'1"
XL183 - 198cm 6' - 6'5"


Frame Ibis Ripley AF
Fork Fox Performance Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm
Rear Shock Fox Performance Series Float DPS with EVOL, 190mm x 45mm
Wheels Blackbird Send AL
Rims Blackbird Send Alloy (Send I front, Send II rear)
Hubs Ibis Logo
Spokes Sapim
Tires Front: Maxxis DHR2 29 x 2.4" Exo TR, Rear: Maxxis Dissector 29 x 2.4" Exo TR
Bottom Bracket Shimano SM BB52
Crankset Shimano SLX M7100 24mm spindle, S/M: 170mm, L/XL: 175mm
Chainrings 30t alloy
Shifters Shimano SLX M7100
Rear Derailleur Shimano SLX M7100 Shadow Plus
Cassette/Freewheel Shimano SLX, 10-51T
Chain Shimano SLX M7100
Brakes Shimano SLX M7120 4p
Rotors Shimano SM-RT66, 180mm
Brake Levers Shimano SLX M7100
Handlebars Ibis 780mm Alloy
Tape/Grips Lizard Skin Charger Evo
Stem Ibis 31.8mm, S/M: 40mm, L: 50mm, XL: 60mm
Headset Cane Creek 40 ZS44/ZS56
Seatpost Bike Yoke Revive Dropper, S: 125mm, M: 160mm, L: 185mm, XL: 213mm.
Saddle WTB Silverado 142
Pedals Sold separately

* Subject to change without notice.
