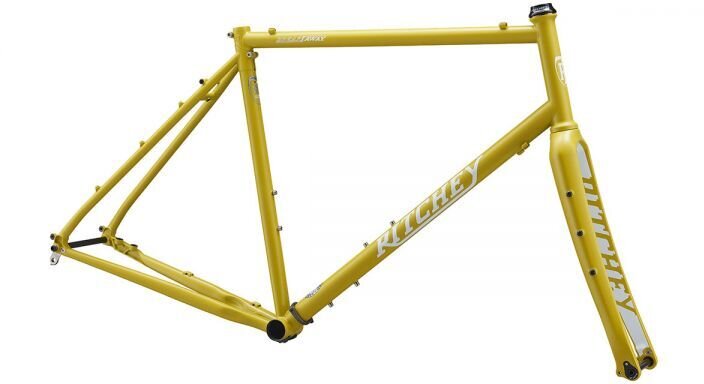

Ritchey Break-Away Outback Frameset

Inspired by an inherent passion for experiencing different cultures and a ceaseless desire to explore the world by bike, Tom designed the new Outback Steel Break-Away for those of us that appreciate the versatility of the Outback and possess the wanderlust to travel with it to far-off destinations—this bike is for everyone who has demanded a steel Outback Break-Away over the past few years.

The Outback Steel Break-Away easily and quickly disassembles to fit into its own included sturdy travel case, which helps you avoid airline extra baggage fees. Once you arrive at your destination, the bike assembles with ease—allowing you to quickly get out and go.

In addition to its liberating and innovative Break-Away design, the Outback Steel Break-Away sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48 or 650B x 2.0 tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the new all-carbon-fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last cafe—wherever that may be.

Frame:
- Patented Ritchey Break-Away design
- Material: heat-treated, triple-butted Ritchey Logic steel tubing—TIG welded
- Rack and fender mounts
- Ultra-light forged and machined straight 1-1/8" headtube
- WCS headset included (upper IS42/28.6—16mm stack height | lower IS42/30)
- 142mm spacing (12mm alloy thru-axle included)
- Replaceable stainless-steel derailleur hanger
- 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
- Front derailleur clamp size: 28.6mm (max torque setting: 2.5Nm)—not included
- Bottom bracket: 68mm—English threaded
- Can accommodate 1X or 2X chainrings
- Crankset min/max ring size—single: 36 to 46t / double: 46/30t to 50/34t
- External cable routing
- Bottle mounts: 3

Fork:
- New Ritchey Carbon Adventure Fork with multi-purpose, rack, and fender mounts
- 1-1/8" straight steerer with integrated 45-degree crown race
- 100mm spacing (12mm alloy thru-axle included)
- Steerer length: 300mm
- Axle-crown: 393mm
- Rake/Offset: 50mm
- Fork max payload: 3kg per side

Tire Compatibility:
- Wheel and tire compatibility: 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
- Frame max spacing: 58mm
- Fork max spacing: 60mm

Brake Compatibility:
- Flat-mount brakes front and rear: 140mm (160mm max—adaptors available separately)
- Frame flat-mount bracket height: 10mm
- Housing stops on down tube optimized for mechanical brake coupling
- Hydraulic brake compatible (please see brake manufacturer recommendation for traveling with hydraulic brakes)

Details:
- Frame weight: 2.28kg (size L—w/o thru-axle)
- Fork weight: 450g. (uncut w/o thru-axle)
- Break-Away travel case and padding included (8.5" / 21.6cm W x 26.5" / 67.3cm H x 31" / 78.8cmL w/ wheels)
- Downtube hinge clamp, rear brake cable connector, and derailleur cable connectors included
