Details
The word Mojo refers to a magic spell or charm, and more broadly - a magical power. Since its introduction in 1994, the Mojo has delivered a wicked combination of fun and all-mountain prowess.

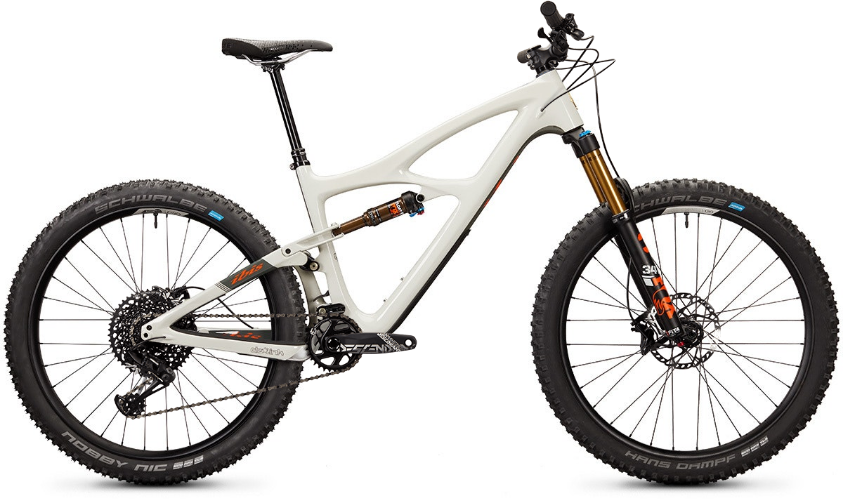

The Mojo V4 features a 76.6-degree, get-you-up-that-hill seat tube angle, our shortest chainstays, and a spacious reach with a 65.4-degree headtube angle. This enchanting combination rolls on 27.5” wheels, to deliver that hoverbike feel with on-trail confidence.
Since 2005, we’ve partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, which has been proven repeatedly at the highest levels of racing.
Our custom-tuned suspension features extra light high-speed compression and rebound damping to deliver unparalleled traction. When paired with our dw-link suspension platform, Traction Tune allows the Mojo to track like a big bike without compromising crisp pedaling performance.
All four sizes have low standover heights and shortened seat tubes for long dropper posts. Now you can choose your frame based on reach?—?riders 5-feet tall easily fit on a small and still enjoy a 125mm dropper, while most medium and up riders can enjoy a 185mm. All sizes fit a water bottle, and those looking to go packless can run our aftermarket Pork Chop bag.
Reduced-offset forks give the front wheel greater stability at speed and an additional sense of steadiness at slow speeds too. The Mojo is designed to excel in technical, demanding terrain, and the 37mm-offset gives that extra bit of confidence and control in the most challenging situations.
Specs
Frame | Carbon Fiber Monocoque |
---|---|
Fork | Fox Float 34 Factory Series Grip 2 140mm, 27.5”, 110x15 |
Headset | Cane Creek 40 ZS44/ZS56 |
Rear Shock | Fox Float Factory Series, DPS with EVOL, 210 x 50 |
Rims/Wheels | Ibis S35 Aluminum / 27.5" / Ibis Hubs |
Tires | Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy |
Crankset | SRAM GX Eagle Alloy 170 or 175mm, DUB spindle, 32t Alloy Ring |
Bottom Bracket | SRAM DUB BSA |
Chain | SRAM GX Eagle |
Rear Derailleur | SRAM GX Eagle |
Rear Cogs | SRAM XG 1275 10-50 12 speed |
Shifters | SRAM GX Eagle |
Handlebars | Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL) |
Tape/Grips | Lizard Skins Charger Evo |
Stem | Ibis 31.8mm (40, 50, 60, 70, 80, 90mm) |
Brakes | Shimano SLX M7100 2 Piston |
Saddle | WTB Silverado 142mm |
Seat Post | Bike Yoke Revive Dropper (125, 160 or 185mm) |
* Subject to change without notice.
